IRC106 Industrial Radio Remote Control System
Wireless solutions for industrial applications

The IRC106 Industrial radio control system utilises the latest European miniature radio technology to provide operators the freedom of movement from fixed equipment installations.
Operators requiring remote control have traditionally been tied to equipment using an umbilical cord. This has restricted movement and has made operation cumbersome, unproductive and in some cases unsafe.

With a nominal range of 50metres and flexible output configurations, the IRC106 offers an elegant solution to remote controlling equipment.

brochure (96k)

Transmitter Unit IRC106-Tx

  • Transmitter Unit 106IRC-Tx.
  • 16 digital function control.
  • Power supply: 2 x AA batteries.
  • Nominal operating period 40 hours continuous or 50 days at 10% usage for 8 hours per day.
  • RF generated on Button pressed.
  • License free 433MHz operation with two TX frequencies, switch selectable.
  • Super bright LED to indicate TX operation.
  • Optional software for bi-directional communications.
  • Link integrity checking.
  • Dimensions 168 x 74 x 35mm
  • Weight 240g
  • Built-in belt clip (clip in holster optional)

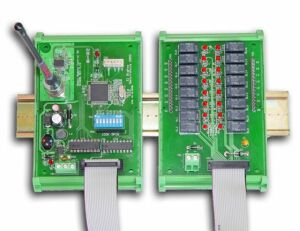

Receiver Unit IRC106-Rx - Receiver Card

  • 16 open collector outputs, each capable of 500mA at 24Vdc.
  • Power supply 12-24v DC 350mA
  • Diagnostic LED to confirm correct decoding.
  • Direct antenna or optional SMA connector extension.
  • Optional bi-directional communications.
  • Dimensions: 72 x 80mm PCB card.
  • DIN rail mounting hardware included

IRC106-RLY - Relay Card

  • Connects to the IRC106 Rx board to provide 16 voltage free relay outputs.
  • Two versions are available, IRC106 RLY/12 for 12 volt operation and the IRC106 RLY/24 for 24 volts.
  • Contacts are rated at 30VDC or AC at 1Amp resistive.
  • Dimensions: 72 x 80mm PCB card.
  • DIN rail mounting hardware included.
