950 Radio Management System

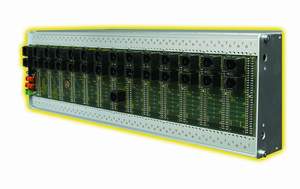

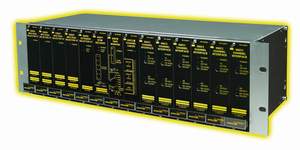

In its simplest form, the 950 system can monitor and control 6 radio channels from a single operator position. From there, the system can be expanded up to 30 channels and 14 operator positions. The 19" sub-rack format and modular design enables systems to be easily installed with existing networks and allows for future expansion needs.

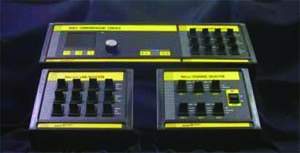

960SC - 6 Channel Selector for Console
960SC12 - 12 channel Selector for Console
Provides "off", "monitor" and "operate" function for each channel. A LED indicator gives mute/PTT status. An auxiliary on/off switch for control of a rack function is included.

960SH - 6 Channel Selector for Handset
960SH12 - 12 Channel Selector for Handset
Stand alone unit with the same functions as the 960SC and 960SC12 respectively.

960LC - 6 Link Selector for Console
960LH - 6 Link Selector for Handset
960LC12 - 12 Link Selector for Console
960LH12 - 12 Link Selector for Handset
The channel linking panels allow for the cross patching or linking of any of the installed channels to the system. The switches are standard three position toggles allowing 2 independent multi-channel linked paths with the middle position denoting a non-linked state.

960SC12/DA 12 Channel Dual Audio Selector (Desk Mount)
980SC12/DA 12 Channel Dual Audio Selector (Rack Mount)
In addition to the normal functions of the channel selectors, these Dual Audio versions provide separate speakers for monitored and controlled audio - each with their own level adjustment. Operators of busy multi-channel networks would find this feature very helpful.

950DS Dual Selector
A rack mounted module capable of driving two 960 selectors and their peripherals. Individual preset for background monitoring. Connection is via a 6 wire cable up to 100 metres from the 950SR subrack.

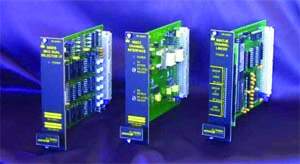

950CI Channel Interface
A rack mounted module to interface to local or remote transceivers. Transmit and receive level adjustment is available from the front panel. Mute and PTT LED indication is also provided to assist in commissioning and maintenance.

950CL Channel Linker
Connecting to the 960LC Link Selector Panel this card enables the cross patching or linking of channels connected to the system. Two independent links can be established, each with multiple channels.

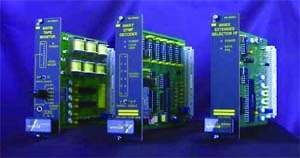

950TM Tape Monitor
Mixed transmit and receive channel audio output levels can be individually adjusted for recording to a multi-track tape recorder.

950DT 6 channel DTMF Decoder
Used in conjunction with the 950CL card, mobiles with DTMF capabilities can remotely channel link without the supervision or intervention of an operator.

950ES Extended Selector Interface
The 950ES enables the remote location of an operator position allowing the system to be fully controlled from another city.
