960
CSD Console
BISS Technologies is pleased to announce the release of the "960CSD
Communications Console". This is the most versatile console
yet produced by the BISS Technologies design team. Apart from the usual
audio facilities which includes built-in mic and VU meter, the
"960CSD" boasts full SELCAL, ANI and DTMF channel change
facilities. All the functions and parameters are configured with
a simple-to-use "Windows" program via a standard serial
COM port.
|
|
-

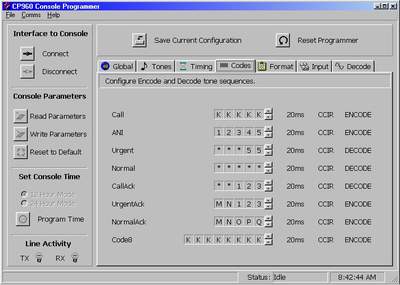

Tone
sequences from 4-8 tones
-
Encode/decode most tone sequences.
-
Encode/decode
tone all standard periods down to 20 ms.
-
Status
entry and recognition including 2 tone period gaps.
-
Standard
command tones such as emergency, status, group etc
-
Extended
group tone format with 3 tone periods.
Automatic reties and acknowledgment.
-
ANI
queue 10 calls deep.
Queue mask, view only required ANI digits.
-
Manual
or automatic Mute control
|
![](../images/960CSD_prog_codes.JPG) |

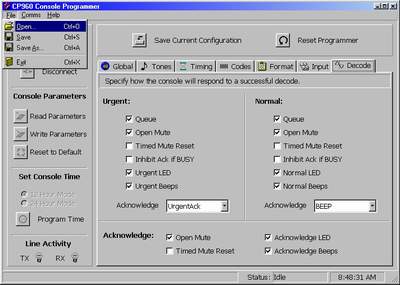

DTMF
Channel control features:
- Generates
"standard" DTMF tones for equipment channel change or
control
- Directly
compatible with the BISS Technologies "970" channel change
decoder
- Channel
query, reset and 'change-to-previous-channel' commands.
|
![](../images/960CSD_prog_open.JPG) |
Other
features:
- PTT
and mic facilities on the front panel for minimum footprint or
backup operation. Provision for external mic, footswitch and headset.
- Date
and time can be set from the front panel. 12/24 hour modes.

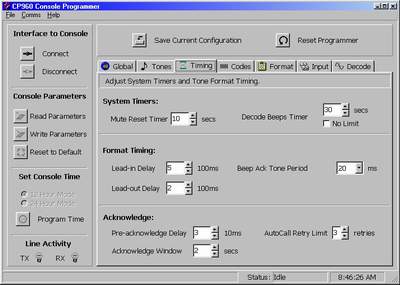

- Lead-in/lead-out
timers.
- Programmable
LED sequences and tone melodies to notify the operators of all
events.
|
![](../images/960CSD_prog_timing.JPG) |
-

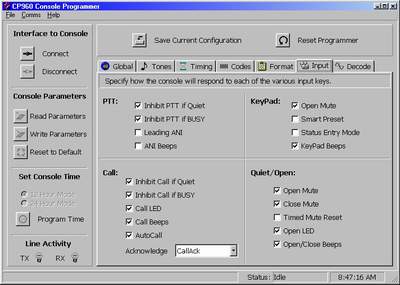

COM
port connection to the console.
Software supplied, designed for Windows 9X platform.
-
All
the parameters are configurable via the programmer.
-
All
parameters are saved to a non-volatile EEPROM in the console,
i.e. all parameters are saved in the case of a power failure.
-
Configurations
can be saved to disk
|
![](../images/960CSD_prog_input.JPG)
|
