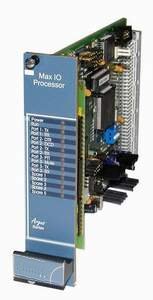

9200/11M Processor Card
The processor card provides all control functions for the I/O cards in the sub-rack. It also offers three independent serial ports including an inbuilt V23 modem for direct connection to a radio. The 9200/11M can be locally programmed from a PC or laptop via serial port 1, or remotely using the inbuilt modem on port 3.

Brochure (80k)

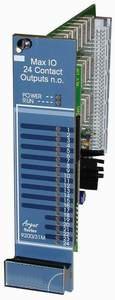

9200/31M (A or B) 24 Output Relay Card
The 9200/31M comes in two versions, the 'A' type provides 24 voltage free normally open relay contacts, and version 'B' offers 24 open collectors. The front panel has LED indicators to show the status of each output. All connections to this card are on the rear of the rack. The processor card can drive multiple of these output modules allowing control of large numbers of outputs.

Brochure (80k)

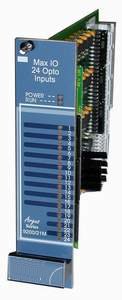

9200/21M (A, B or C) Digital Input Card
The 9200/21M module provides 24 two-wire non polarised opto-isolated inputs that respond to AC and DC excitation. Three versions are available: (A), standard: (B), high sensitivity: and (C), contact input. The front panel has LED indicators to show the status of each input. All connections to this card are at the rear of the sub-rack. The processor card can drive multiple of these modules allowing monitoring of a large number of inputs.

Brochure (84k)

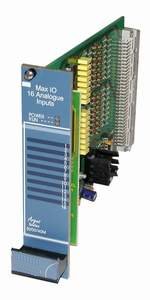

9200/40M (A, B or C) 16 Analogue Input Card
This module comes in 3 versions and provides for 16 analogue inputs, each with 8 bit resolution. The three main industry standards are covered with these cards, namely, 0-5V, 0-10V and 4-20mA.

Brochure (84k)

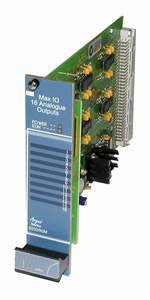

9200/50M (A or B) 16 Analogue Output Card
The analogue output card is offered in two versions, 0-5V and 0-10V. There are 16 outputs each with 8 bit resolution.

Brochure (57k)

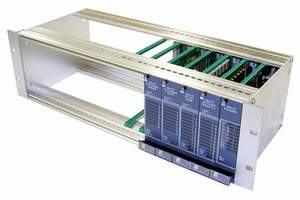

9200/(01,02 or 03)M Subrack
The subrack can be supplied in 3 versions. The 'basic', 9200/01, accommodates a processor card and up to 6 I/O modules: 'extended', 9200/02 adds control to another 7 I/O modules, and the 9200/03 'dual' which allows two 'basic' systems to operate in one subrack. This facility is useful for "hot standby".

Brochure (220k)

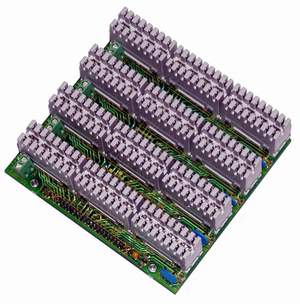

9200/94 (B, C or D) KRONE Termination
To take make the connection to the ARGUS MAX I/O modules easier, the 9200/94 mass termination blocks have been designed to take advantage of the 'KRONE' connection system. Three versions are available, the 'B' model for connection to 2 modules, the 'C' version to connect to 3 modules and the 'D' version for connection to 4 modules. These units bolt to the rear of the sub-rack and mate with the IDC connectors thus no additional wiring is required.

Brochure (96k)
