990
Communications Management System
|
990
Communications Management System
The
BISS Technologies release of the 990 Comsys as a product offering features,
characteristics and system capacity beyond our other solutions
caters to the larger requirements from our existing installations.
The backbone of the 950 Radio Management System has been maintained
with additional flexibility for operator control/interface and
enhanced operational features. Installations incorporating the
BISS Technologies 950 Radio Management System may readily expand to
the 990 Comsys with the option of both 950 and 990 solutions running
within the same system.
|
|
 950
& 990 Brochure
|
Applications
|
|
990AMC/ANI
Operator Console
Incorporating the popular and successful Audio Management
Unit complete with Selcall and ANI, this unit processes the complete
communication center audio sources to a single access point for
the operator.
|
 |
|

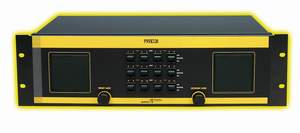

990SC12A
Channel Selector (12 way)
990SC24A
Channel Selector (24 way)
990SC24PB
Channel Selector (24 way, Push Button)
As an initial control step to the radio network, channel access
via the 12 way channel selector is provided. Each channel offers
a three-way switch:
Up = Channel off
Mid = Monitor only
Down = both TX & RX access
Any
combination of channels may be selected by any, or indeed all,
operator positions.
|
 |
|

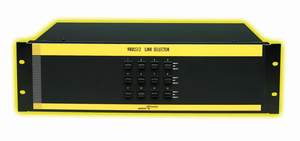

990LC12A
Channel Linker (12 way)
990LC24A
Channel Linker (24 way)
990LC24PB
Channel Linker (24 way, Push Button)
As with the 950 Radio Management System, the 990LC12A Channel
Linker allows for the cross patching or linking of any of the
installed channels to the system. The switches are the standard
three position toggles, with the middle position denoting a non-linked
state.
|
 |
|

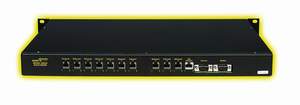

950RAM
Rack Audio Mixer
The 950RAM Rack Audio Mixer provides audio and data combining
for up to five 950SR subracks. Up to 30 channels can be configured
to each 950RAM.
|
 |
|
950AS
Advanced Selector Card
The 950AS Advanced Selector Card provides the channel interface
to the operator console via the 950RAM Rack Audio Mixer.
|
 |
|
950MSD
Multi Selcall Decoder
This card provides the Selcall decoding of the system. The interface
at this point enables multiple selcalls to be received and processed
simultaneously on a per channel basis.
|
 |
|
|
|
